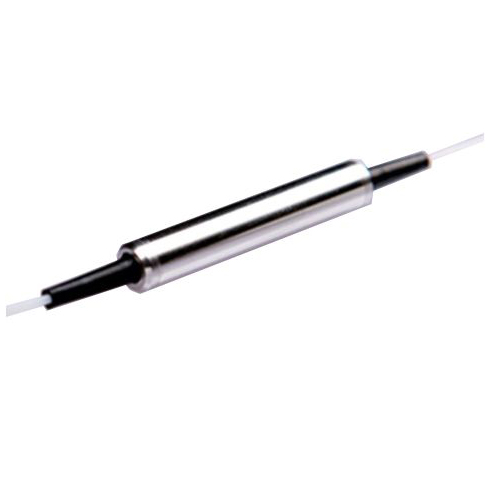

High Isolation WDM
FEATURES
- Low insertion loss
- Low excess loss
- Low PDL
- High directivity
- Long haul reliability
- Customized design is available
SPECIFICATIONS
Wavelength (nm) | 1310±15 and 1550±15 |
Polarization Stability (dB) | 0.2 |
Directivity (dB) | 60 |
Isolation (2-Stage) (dB) | 34 |
Insertion Loss (2-Stage) (dB) | 0.9 |
Isolation (3-Stage) (dB) | 45 |
Insertion Loss (3-Stage) (dB) | 1.2 |
Operating Temp. (°C) | -20 ~ +75 |
