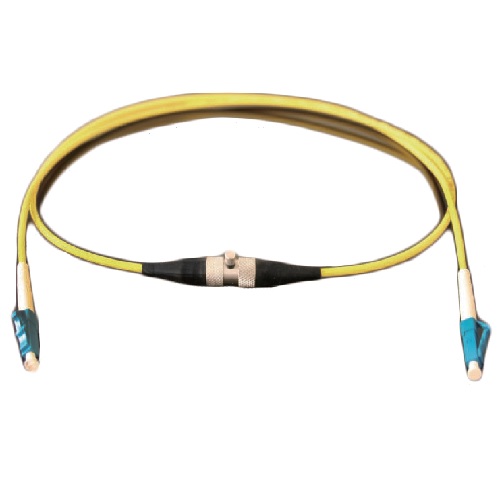

Variable Attenuator (Air Gap Type)
FEATURES
- Environmentally-friendly
- Easy for installation
- Customized design is available
- Low return loss
- Compact package
SPECIFICATIONS
Mode Type | Singlemode | |
Wavelength (nm) | 1310/1550 | |
Attenuation (dB) | 1-30 | |
Variable Range (dB) | A | 1-12 |
B | 1-20 | |
C | 1-25 | |
D | 1-35 | |
E | 1-20 | |
Return Loss (dB) | APC | ≧60 |
PC | ≧45 | |
Resolution (dB) | 0.1 | |
Operating Temp. (˚C) | -20 ~ +75 | |
