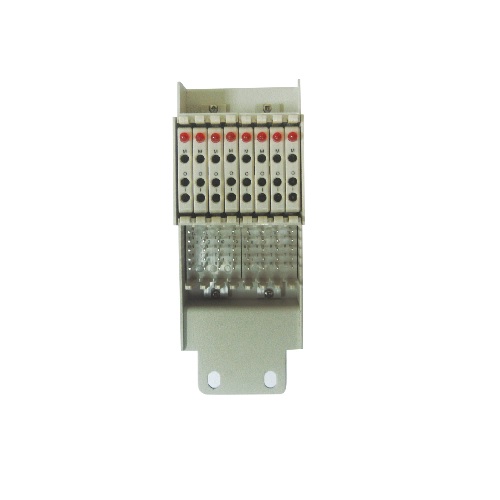

DSX-SME1/T1(4 & 8 Circuit)
FEATURES
- Cross connected and data communication
- Circuit testing and monitoring functions
- Stainless steel case
- High capacity, low initial construction cost
- LED indicator
- Three WECO358 jacks: Monitor, Out, In
- Standard plug (WECO358)
- Individual circuit card without any wiring connection
- In compliance with the requirements of Chunghwa Telecom
SPECIFICATIONS
Impedance |
BNC E1:75Ω±5% (@1024KHz) T1:75Ω±5% (@772KHz) |
Wire Wrap E1:120Ω±5% (@1024KHz) T1:100Ω±5% (@772KHz) |
|
| Monitor Level |
-20dB±1.0dB(DC~3MHz) |
| Contact Impedance |
≤0.02Ω |
| Cross Talk |
E1: < -56dB / T1: < -60dB |
| Insertion Loss |
< -0.2dB(Wire Wrap) / < -0.5dB(BNC) (DC~3MHz) |
| Insulation Resistance |
>1,000MΩ |
| Power Requirement | -48VDC, LED < 10mA |
| Jack Life |
Over 10,000 times |
| Operating Temp. |
0°C~65°C |
| Humidity |
5%~95%RH |
Capacity and Dimensions
| Model | 7” Model |
| Capacity | 4 or 8 Circuits |
| Dimensions (mm) | 69(W)x176(H)x113(D) |
