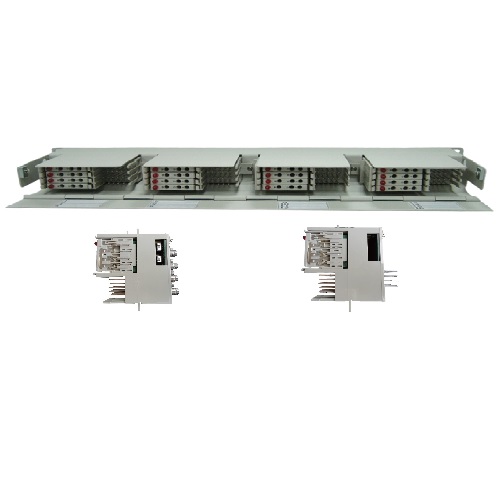

DSX-SME1/T1(1U 16Circuit)
FEATURES
- Cross connected and data communication
- Circuit testing and monitoring functions
- Stainless steel case
- High capacity, low initial construction cost
- LED indicator
- Three WECO358 jacks: Monitor, Out, In
- Standard plug (WECO358)
- Individual circuit card without any wiring connection
- In compliance with the requirements of Chunghwa Telecom
SPECIFICATIONS
Impedance | BNC E1:75Ω±5% (@1024KHz) T1:75Ω±5% (@772KHz) |
Wire Wrap E1:120Ω±5% (@1024KHz) T1:100Ω±5% (@772KHz) | |
| Monitor Level | -20dB±1.0dB(DC~3MHz) |
| Contact Impedance | ≤0.02Ω |
| Cross Talk | E1: < -56dB / T1: < -60dB |
| Insertion Loss | < -0.2dB(Wire Wrap) / < -0.5dB(BNC) (DC~3MHz) |
| Insulation Resistance | >1,000MΩ |
| Power Requirement | -48VDC, LED < 10mA |
| Jack Life | Over 10,000 times |
| Operating Temp. | 0°C~65°C |
| Humidity | 5%~95%RH |
Capacity and Dimensions
| Model | 19” Model |
| Capacity | up to 16 Circuits |
| Dimensions (mm) | 483(W)x44.5(H)x195(D) |
