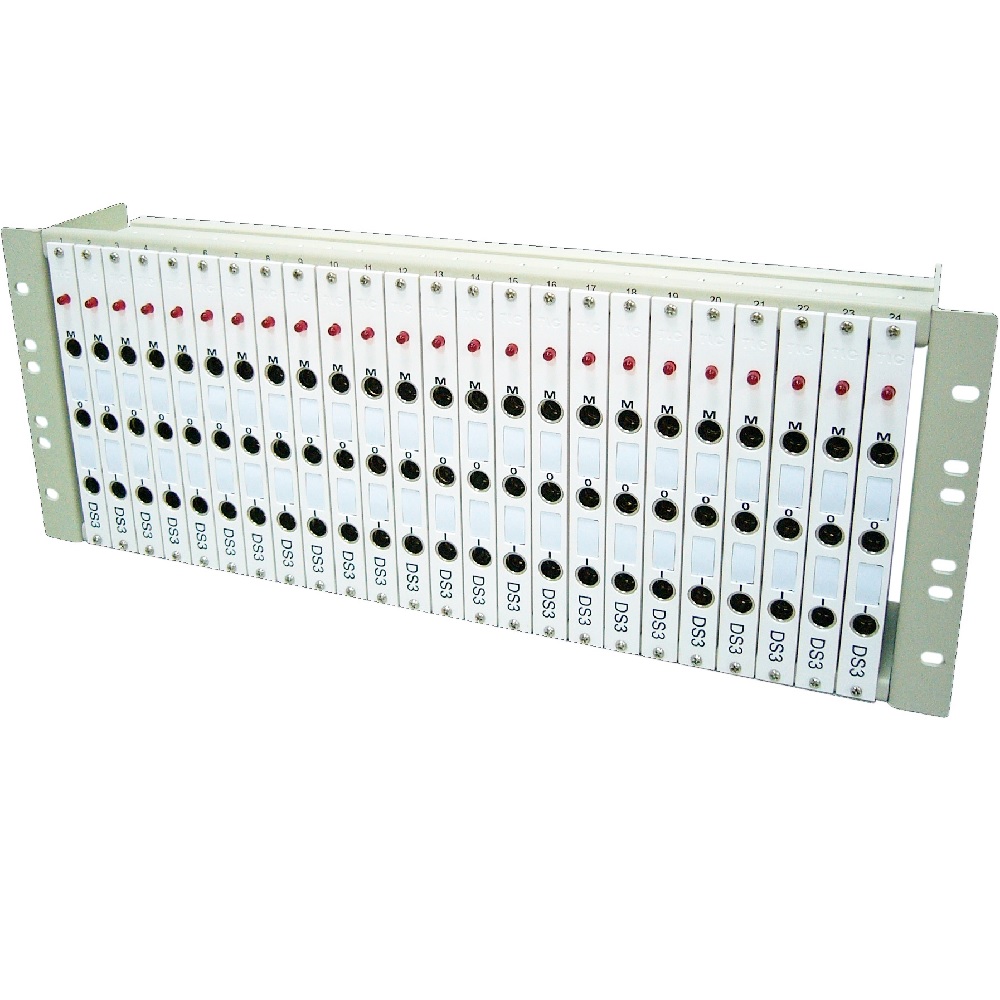

DSX-DS3 (24 & 32-Circuit)
FEATURES
- Cross connected and data communication
- Circuit testing and monitoring functions
- Stainless steel case
- High capacity, low initial construction cost
- LED indicator
- Three WECO358 jacks: Monitor, Out, In
- Standard plug (WECO358)
- In compliance with the requirements of Chunghwa Telecom
SPECIFICATIONS
| Impedance | 75Ω, Nominal, Unbalanced |
| Monitor Level | -21dB±1.5dB(5MHz~300MHz) |
| Return Loss | < -20dB |
| Cross Talk | < -60dB |
| Insertion Loss | < -0.8dB(Xin~In,5MHz~300MHz) |
| < -0.8dB(Xout~Out,5MHz~300MHz) | |

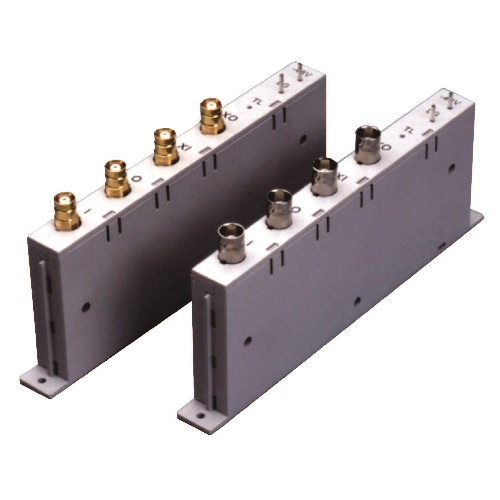

| Connector Type | BNC |
| Power Requirement | -48VDC, LED < 10mA |
| Jack Life | Over 10,000 times |
| Operating Temp. | 0°C~65°C |
| Humidity | 5%~95%RH |
Capacity and Dimensions
| Model | 19” Model | 23” Model |
| Capacity | up to 24 Circuits | up to 32 Circuits |
| Dimensions (mm) | 483(W)X182(H)X91(D) | 583(W)X182(H)X91(D) |
