SPECIFICATIONS
|
Mode Type |
Singlemode |
Multimode |
|
|
Polish Type |
PC |
APC |
PC |
|

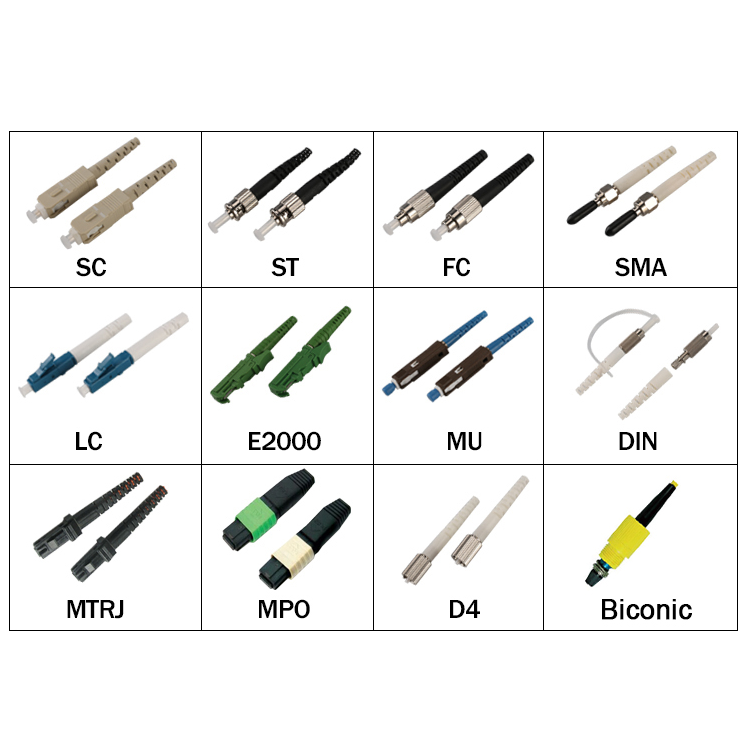

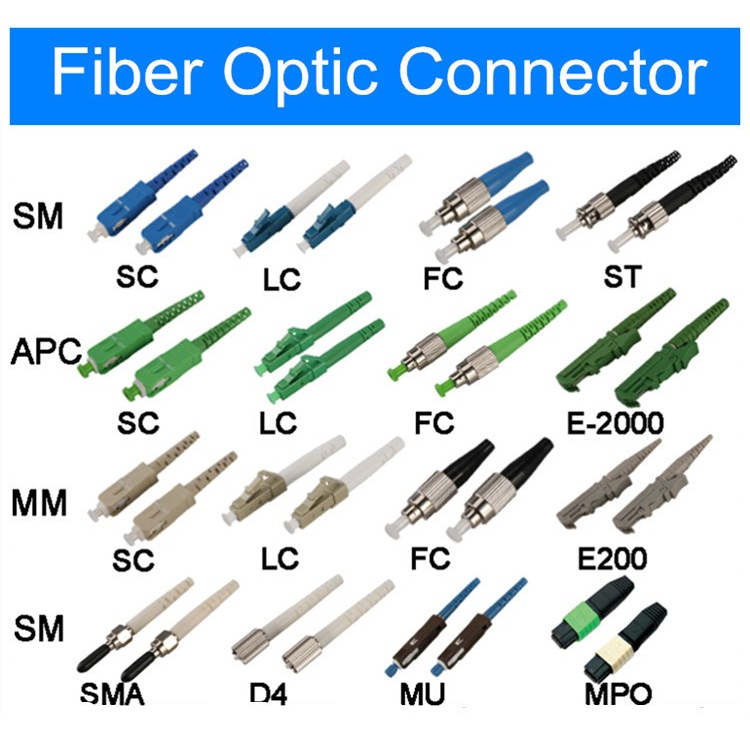

Connector Type |
FC,SC,ST LC,MU,MTRJ |
FC,SC,ST LC,MU |
FC,SC,ST LC,MU,MTRJ |
|
Insertion Loss (dB) |
≦0.2 |
≦0.4 |
≦0.4 |
|
Return Loss (dB) |
45~55 |
60~65 |
＞35 |
|
Operating Temp. (°C) |
-40 ~ +75 |
||
|
Storage Temp. (°C) |
-55 ~ +85 |
||
Applicable Fiber Cable Specifications & Fiber Transmission Performance
| Mode Type | Singlemode (1310/1550nm) | Multimode (850/1300nm) | |
| Mode Field Diameter (μm) | 9/125 | 50/125 | 62.5/125 |
| Maximum Attenuation (dB/km) | 1.0/0.75 | 3.5/1.5 | 3.75/1.5 |
| Typical Attenuation @23°C (dB/km) | 0.5/0.4 | 3.0/1.0 | 3.0/1.0 |
| Minimum Bandwidth (MHz/km) | - | 400/400 | 160/500 |
