FEATURES
- Low insertion loss
- Low back reflection loss
- Customized design is available
- Easy for installation
- Environmentally-friendly
SPECIFICATIONS

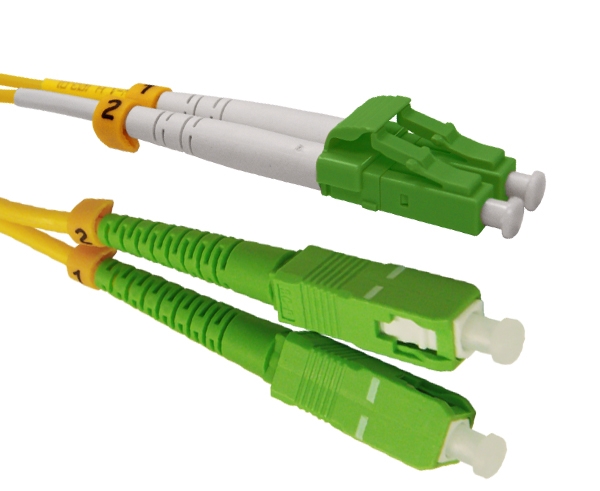

Angled Patch Cord and Pigtail (G657.A)
| Insertion Loss (dB) |
≦0.4 |
| Return Loss (dB) |
60 ~ 68 |
| Operating Temp. (°C) |
-20 ~ +70 |
Mechanical Characteristics (G657.A)
| Tensile Strength (N) |
Long Term |
60 |
| Short Term |
120 |
|
| Bending Radius (mm) |
Dynamic |
50 |
| Static |
30 |
Fiber Macro Bend Loss (G657.A)
| Wavelength (nm) |
1550 |
1550 |
1625 |
|||
| Mandrel Diameter (mm) |
20 |
32 |
30 |
50 |
60 |
60 |
| Number of Turns |
1 |
1 |
10 |
100 |
100 |
100 |
| Induced Attenuation (dB) |
≦0.5 |
≦0.5 |
≦0.05 |
≦0.05 |
≦0.01 |
≦0.01 |
Applicable Fiber Cable Specifications & Fiber Transmission Performance
| Mode Type |
Singlemode (1310/1550nm) |
Multimode (850/1300nm) |
|
| Mode Field Diameter (μm) |
9/125 |
50/125 |
62.5/125 |
| Maximum Attenuation (dB/km) |
1.0/0.75 |
3.5/1.5 |
3.75/1.5 |
| Typical Attenuation @23°C (dB/km) |
0.5/0.4 |
3.0/1.0 |
3.0/1.0 |
| Minimum Bandwidth (MHz/km) |
- |
400/400 |
160/500 |
| Connector Type |

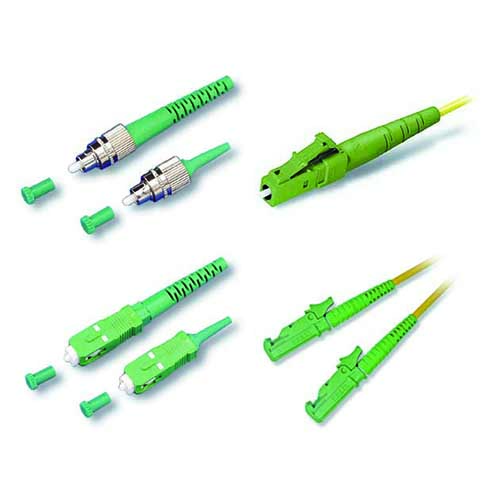

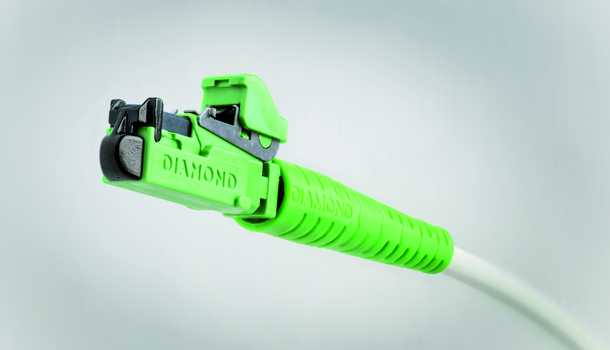

LC, MU, E2000, FC, SC |
||
