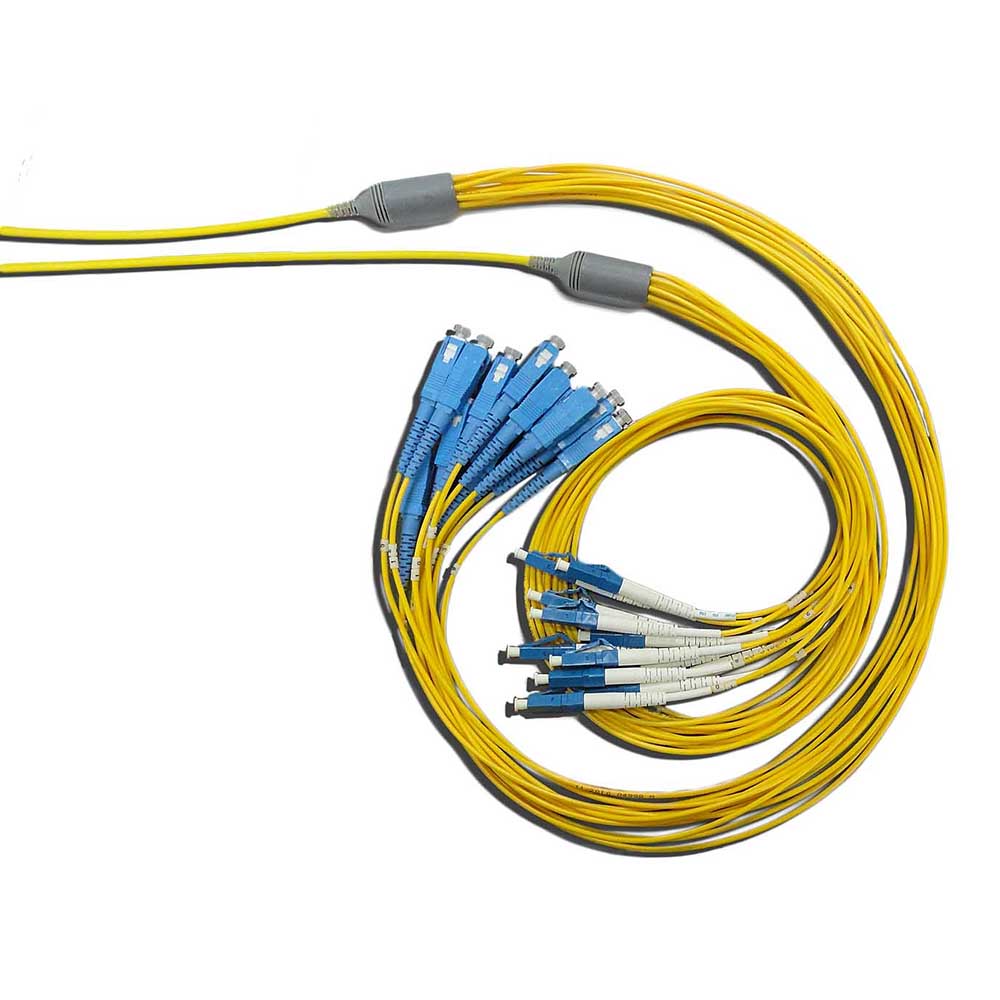

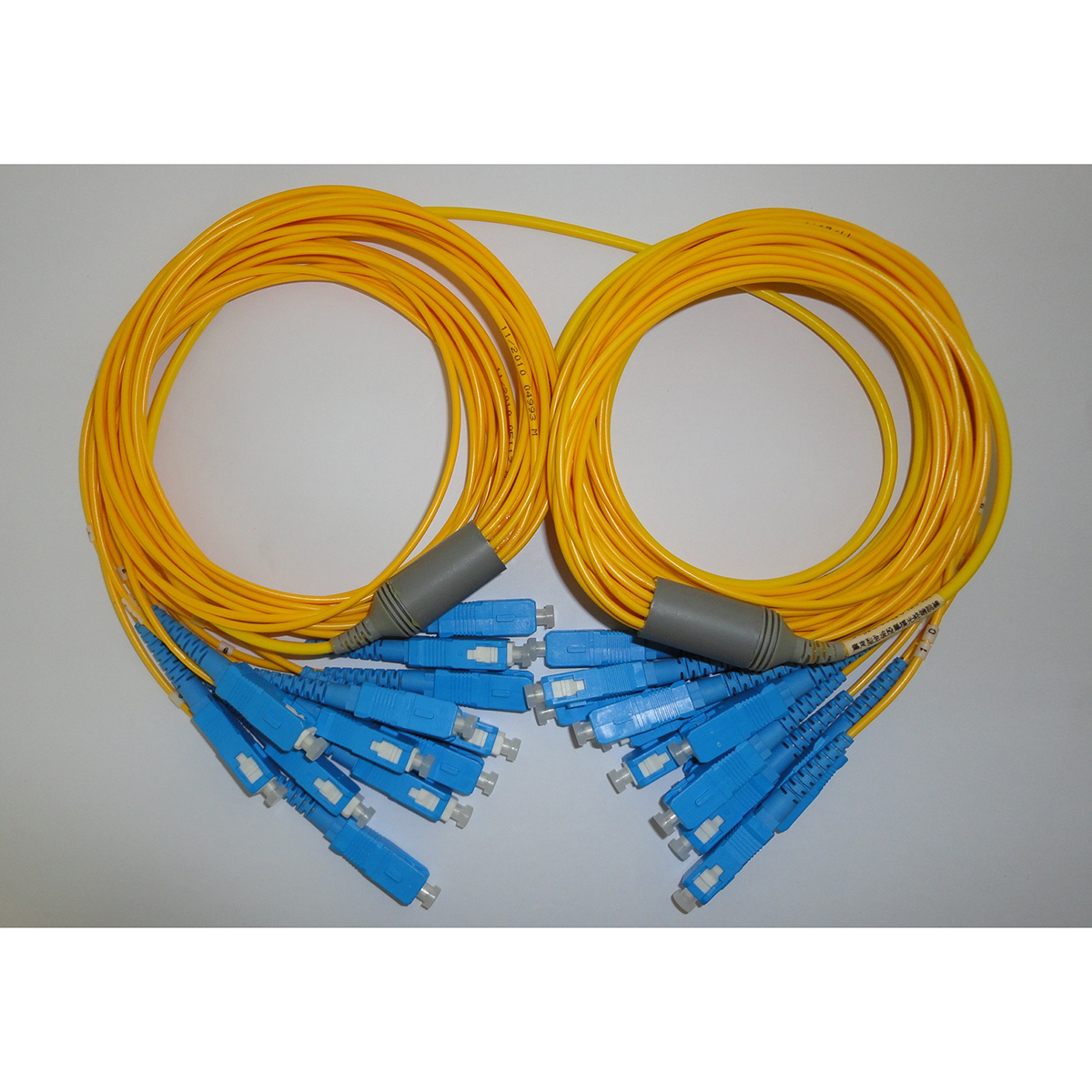

FIBER CONSTRUCTION
|
Fiber Diameter (um) |
250±5 |
|
Fiber Color |
1.Blue 2.Orange 3.Green 4.Brown 5.Grey 6.White 7.Red 8.Black 9.Yellow 10.Violet 11.Pink 12.Aqua |
|
Cable Diameter (mm) |
3.0 |
|
Cable Weight (kg/km) |
approx. 6.3 |
MECHANICAL CHARACTERISTICS
|
Max. Loading (IEC794-1) Installation Operation |
100N 30N |
|
Min. Bend Radius (IEC794-1) with Load (mm) without Load (mm) |
20XD 10XD |
|
Operation and Storage Temperature (ºC) |
0 ~ +60 |
OPTICAL CHARACTERISTICS
|
Fiber Type |
Singlemode (1310/1550nm) |
Multimode (50/125um) (850/1330nm) |
Multimode (62.5/125um) (850/1330nm) |
|
|
Attenuation |
Typical |
0.36/0.22 |
3.0/1.0 |
3.0/1.0 |
|
Maximum |
0.5/0.4 |
3.5/1.5 |
3.5/1.5 |
|
|
Zero Dispersion Slope |
<0.093 ps/(nm/km) |
- |
- |
|
|
Dispersion (1285~1340nm) |
-3.5-3.5 ps/(nm/km) |
- |
- |
|
|
Mode Field Diameter (um) |
9.3±0.4 |
- |
- |
|
|
Cutoff Wavelength (nm) |
<1270 |
- |
- |
|
|
Bandwidth |
@850nm |
- |
≧2000MHz/km |
≧160MHz/km |
|
@1300nm |
- |
≧400MHz/km |
≧200MHz/km |
|
|
Cladding Diameter (um) |
125±1.0 |
125±1.0 |
125±1.0 |
|
MODEL TYPE
|
Mode Type |
Singlemode |
Multimode |
Singlemode |
|
Connector Type |
LC, FC, SC, ST |
LC, MU, FC SC, APC |
|
|
Insertion Loss (dB) |
≦0.3 |
≦0.4 |
≦0.3 |
|
Return Loss (dB) |
>50 |
- |
61~68 |
|
Operating Temp. (ºC) |
-20 ~ +70 |
||
|
Storage Temp. (ºC) |
-55 ~ +85 |
||
