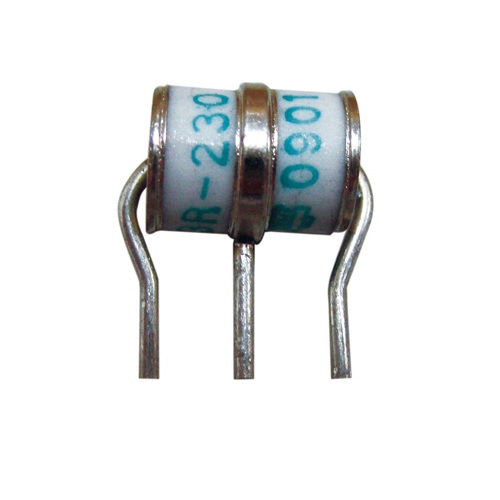

3-Electrode Ceramic Gas Discharge Tube
FEATURES
- High quality
- Convenient for use
- Safe and durable
- Elegant molding
- Superior performance
SPECIFICATIONS
| Item | Value | Unit |
| Nominal DC Spark-Over Voltage (100V/s) | 230 ± 20% | V |
| MAX. Impulse Spark-Over Voltage (1kV/μs) | 800 | V |
| Impulse Discharge Current (8/20μs, 10 times) | 10 | kA |
| Impulse Discharge Current (10/1,000μs, 300 times) | 100 | A |
| AC Discharge Current (50Hz, 1s, 5 times) | 10 | A |
| MIN. Insulation Resistance | 1,000 | MΩ |
| MAX. Capacitance (1MHz) | 1.5 | pF |
| MAX. Transverse Voltage Duration | 200 | Ns |
