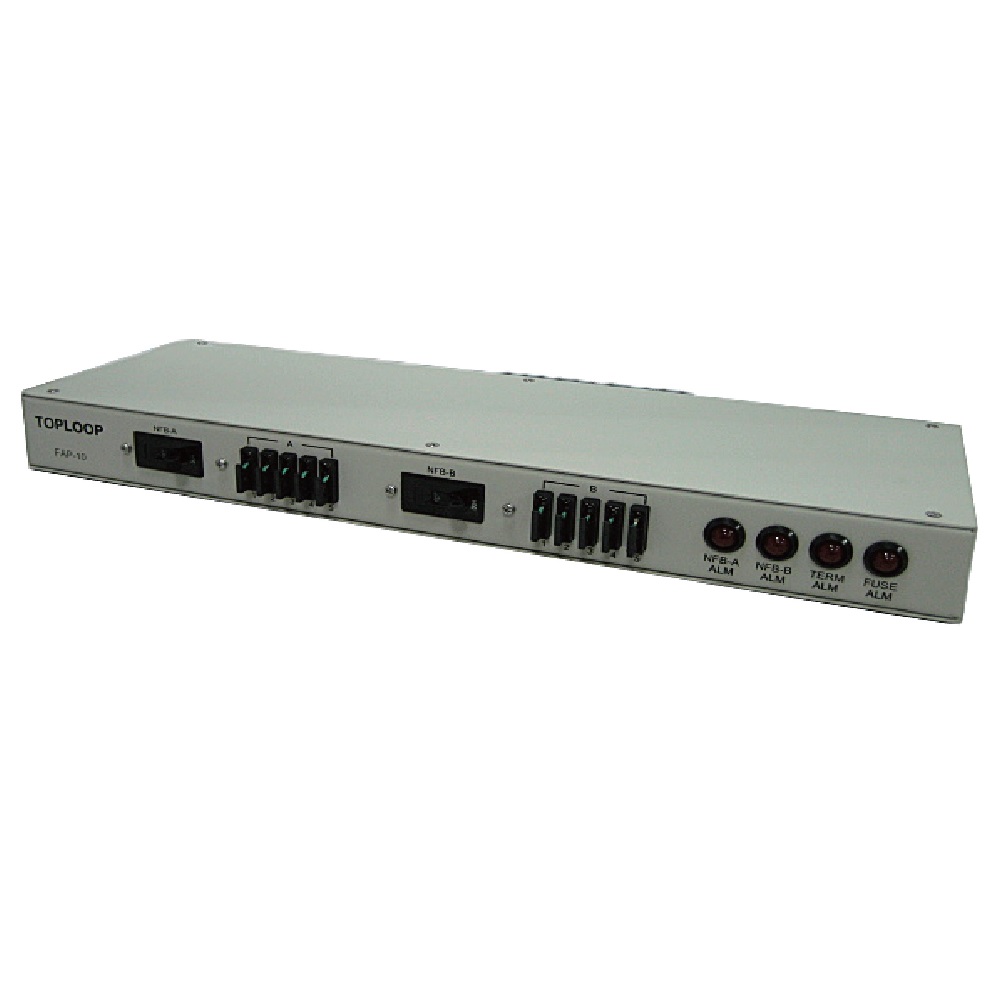

Breaker and Fuse Alarm Panel
FEATURES
- Up to 10 fuses and 2 breakers
- Stainless steel case with enamel paint
- Nickel-brass terminal
- Replaceable fuse
- Fuse can be easily replaced in the front of the panel and the position of the fuse can be changed by request
- Every circuit has its own fuse which will not affect adjacent circuits in case of replacing the fuse during maintenance
- Customized design is available and the products are in compliance with Chunghwa Telecom specifications
- Maximum current is 80A/fuse, 120A/total
SPECIFICATIONS
| Power | -48VDC |
| Breaker | 5A,10A,20A,30A,40A,50A,60A |
| GMT Fuse | 0.5A,2A,5A,10A,15A |
| Installation Rack | 19”,23”,ETSI Standard rack |
| Operating Temp. | 0°C ~ 70°C |
| Humidity | 3% ~ 98%RH |
| Dimensions | 426mm(W)X44mm(H)X140mm(D) |
