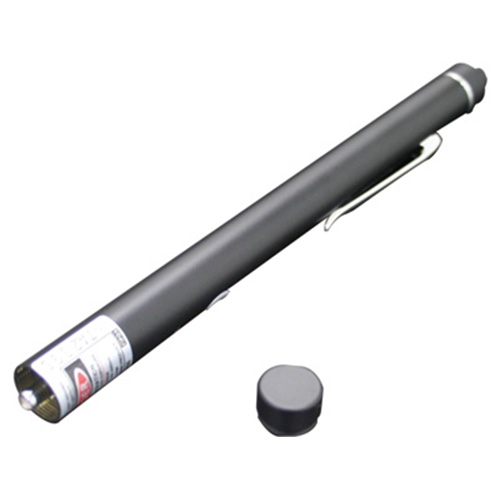

Visual Fault Locator (Pen Style)
FEATURES
- Locating broken point of optic fiber
- 650 nm visible laser light in continuous or pulse mode
- LED indicator
- Power switch on the end of the checker
- Push button CW / Mod (2.5 Hz frequency) / pause
- Pocket-size design
- Protective cap for extra protection
SPECIFICATIONS
Model | TLC-65005VFL | TLC-65010VFL | TLC-65020VFL | TLC-65030VFL |
Central Wavelength (nm) | 650 ± 10 | |||
Output Power (mW) | 5 | 10 | 20 | 30 |
Connector Type | 1.25 mm or 2.5 mm universal | |||
Transmission | CW or 2.5 Hz pulse | |||
Battery | 2 x AAA Alkaline | |||
Operating Temp. (˚C) | 0-50 | |||
Detection Distance (km) | 5 | 10 | 20 | 30 |
Dimensions (mm) Weight (g) | 16 x 17646 (Battery not included) | |||
