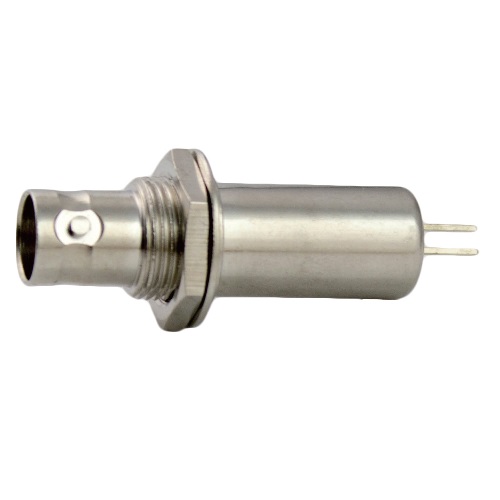

Balun Connector (BNC)
FEATURES
- Connector housing (zinc and nickel plated)
- Center conductor (phosphor bronze with gold plated)
- In compliance with MIL-STD-202 and MIL-C-39012
SPECIFICATIONS
| Impedance | 75 Ω unbalanced to 120 Ω balanced |
| Insulation Resistance | 1G Ω @1,000V DC |
| Dielectric Withstanding Voltage | 1,000V DC |
| Return Loss | ≥20dB @ 1MHz |
Insertion Loss | ≤0.5dB @ V=2.37V peak across 75 Ω side |
| Bandwidth | 52KHz~20MHz |
| Operating Temp. | 0°C~50°C |
