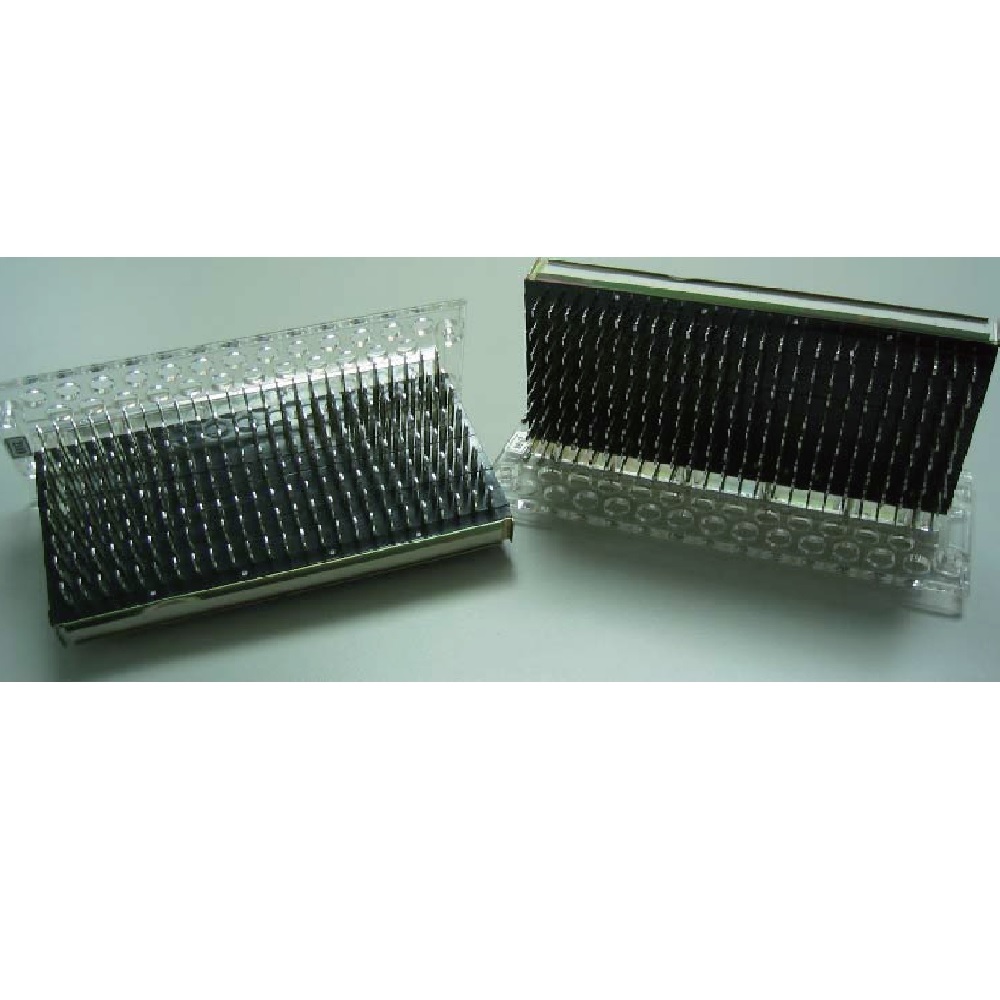

TB-258 Terminal Block
FEATURES
- Pluggable
- Test individually for subscriber line and local line
- Choices for R (welding) and W (wire wrap)
- Transparent base with holes is easy for cable management and installation
- Installed on the main cable tray area
- Contact resistance <0.1Ω
- Insulation resistance >50MΩ at 500VDC
- Dielectric resistance:
Tested at 500VAC/1 sec. without any spark, electric arc and damage
SPECIFICATIONS
| Model | TB258 |
| Plane Bending Degree | ≤2mm |
| Tensile Test | ≥100kg |
| Resistance to Pressure | ≥500kg |
| Insulation Resistance | >50MΩ @ 500VDC |
| Dimensions | 178mm X 75mm X 99mm(±2) |
