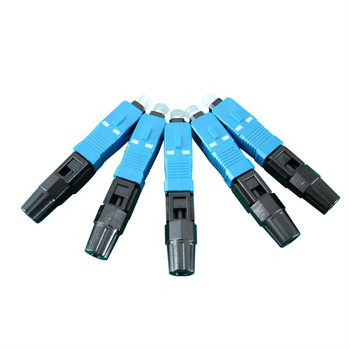

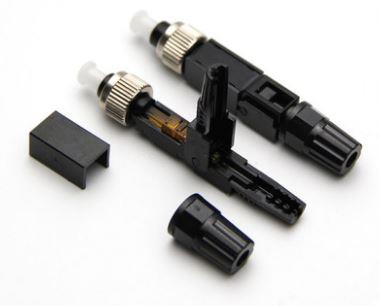

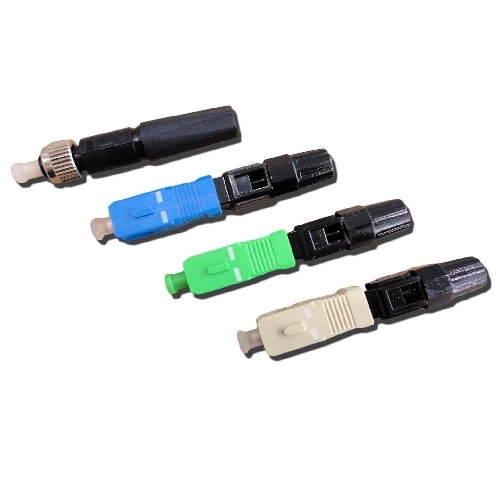

Fast Connector
FEATURES
- Low insertion loss
- Repeatable operation more than 5 times
- Quick installation: Less than 30 sec. of connection
- Durable for more than 30 years of use
- Portable and suitable for installation in confined space without any power
SPECIFICATIONS
| Applicable for |
Drop Cable, Indoor Cable |
| Optic Fiber Diameter (μ m) |
125 (657A & 657B) |
| Tight Buffer Diameter (μ m) |
250 |
| Fiber Mode |
Singlemode |
| Operation Time (sec.) |
About 100 (no fiber cut) |
| Insertion Loss (dB) |
≤ 0.3 (1310nm & 1550nm) |
| Return Loss (dB) |
≤ -40 |
| Fastening Strength of Naked Fiber (N) |
> 5 |
| Fastening Strength of Naked Fiber Holder (N) |
> 10 |
| Tensile Strength (N) |
> 50 |
Operating Temperature (°C) |
> -40 ~ +75 |
On-Line Tensile Strength (20N) |
IL ≤ 0.5dB RL ≤ 5dB |
Mechanical Durability (500 times) |
IL ≤ 0.5dB RL ≤ 5dB |
| Drop-Off Test * |
IL ≤ 0.5dB RL ≤ 5dB |
* Height 4m, once per direction, total 3 times
The following tools must be prepared for operation
