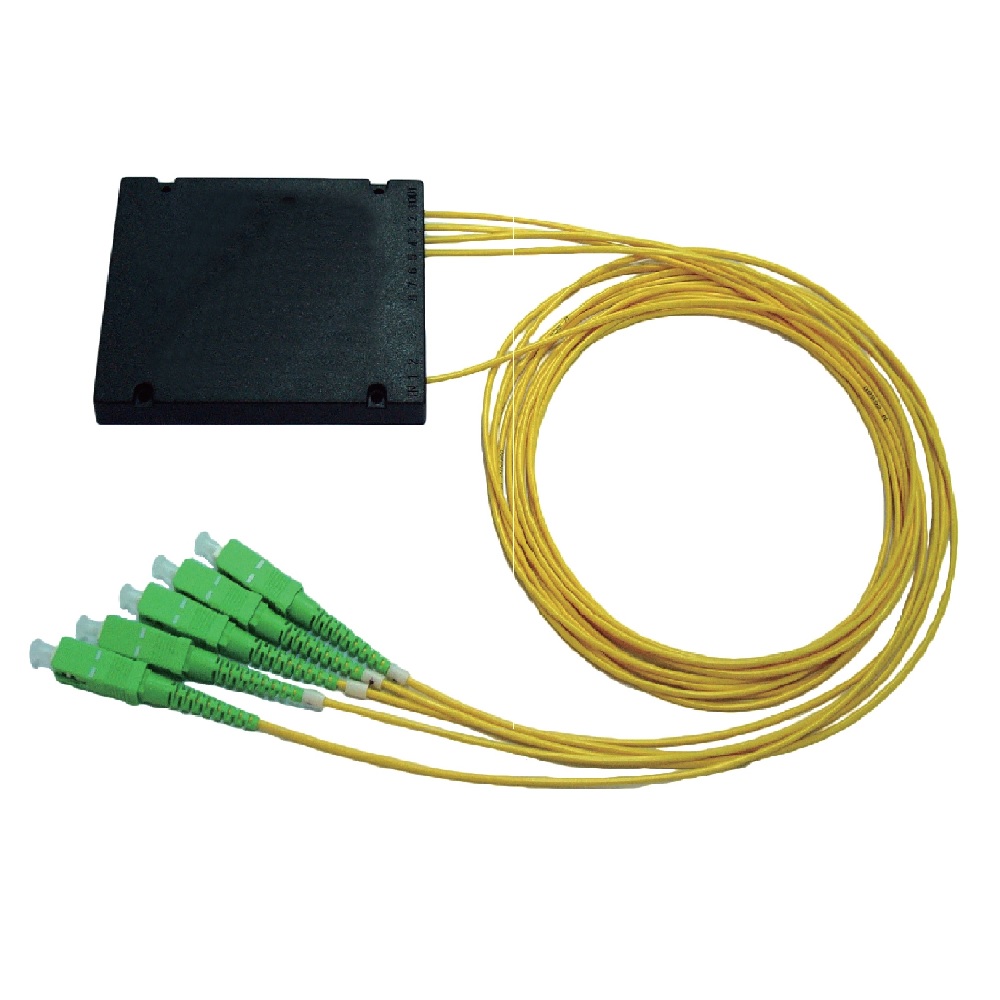

Dual Window Tree Coupler
FEATURES
- High reliability
- Wideband and single band designs
- Low insertion loss
- Low return loss
- Easy for installation
- Customized design is available
- Environmentally-friendly
SPECIFICATIONS
Model | Dual Window Tree Coupler | |||||||
Port Configuration | 1(2) X 4 | 1(2) X 8 | 1(2) X 16 | 1(2) X 32 | ||||
Operating Wavelength (nm) | 1310± 40 and 1550 ± 40 | |||||||
Grade | Super(S) | High(H) | Super(S) | High(H) | Super(S) | High(H) | Super(S) | High(H) |
Maximum Insertion Loss(dB) | 7.2 | 7.6 | 11 | 11.7 | 14.5 | 15.5 | 18.5 | 20.0 |
Uniformity (dB) | 0.9 | 1.4 | 2.1 | 3.2 | 2.6 | 4 | 3 | 6 |
Directivity (dB) | ≧50 | |||||||
Reflectance (dB) | ≧50 | |||||||
Operating Temp. (˚C) | -40 ~ +85 * | |||||||
Storage Temp. (˚C) | -55 ~ +85 | |||||||
Note * | 0 ~ +70°C for 900 μm, 2.0 mm, or 3.0 mm cable | |||||||
