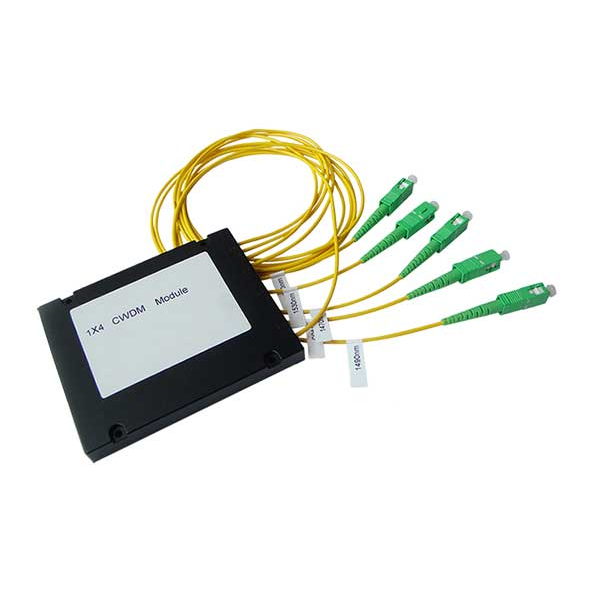

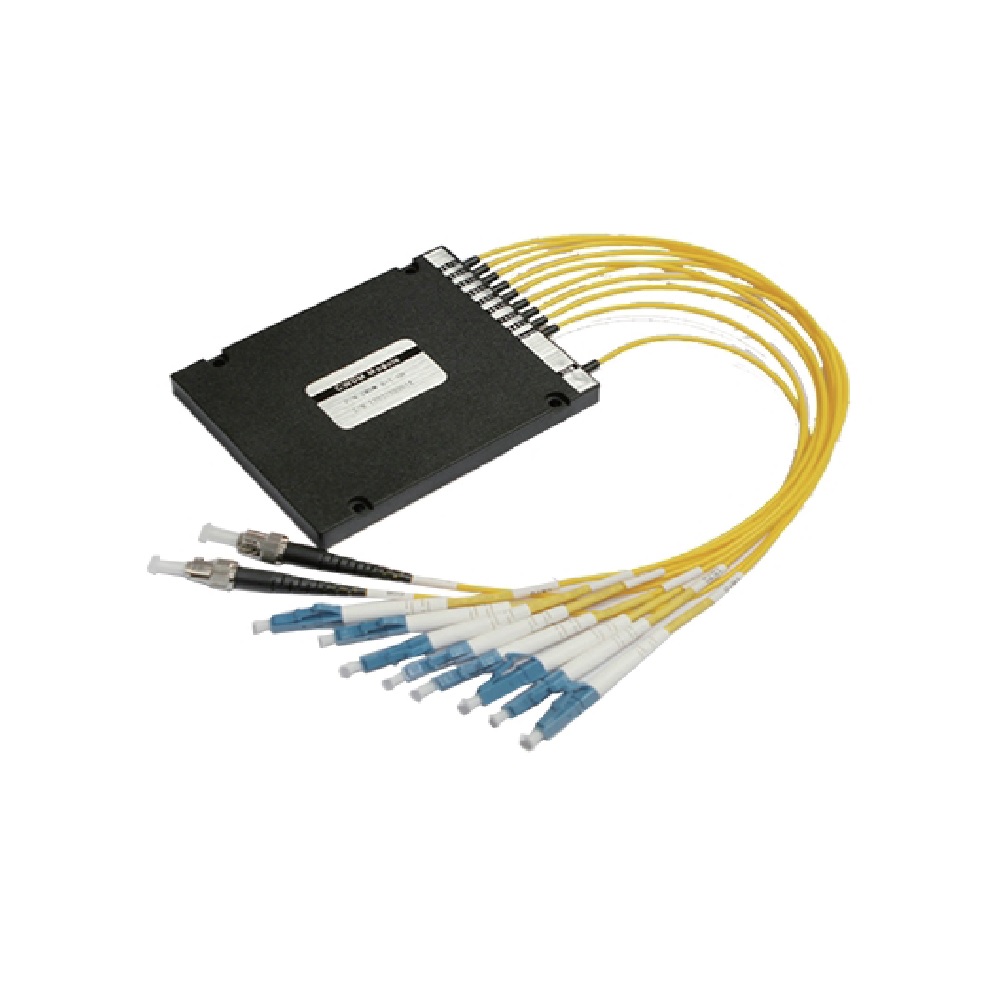

CWDM
FEATURES
- Low insertion loss
- Wide pass band
- High channel isolation
- High stability and reliability
- Epoxy-free on optic path
SPECIFICATIONS
Model | 1x2 | 1x4 | 1x8 | 1x16 | ||||||
Mux | Demux | Mux | Demux | Mux | Demux | Mux | Demux | |||
Center Wavelength (nm) | ITU, ITU+1 | |||||||||
Pass Band (nm) | ITU±6.5 | |||||||||
Operating Wavelength (nm) | 1260~1620 | |||||||||
Channel Space (nm) | 20 | |||||||||
Fiber Type | SMF-28e or customer specified | |||||||||
IL (dB) (P/A Grade) | 0.7/1.0 | 1.4/1.7 | 2.0/2.5 | 3.5/4.0 | ||||||
Isolation (dB) | Adjacent Channel | 30 | ||||||||
Non Adjacent Channel | 45 | |||||||||
Ripple (dB) | 0.3 | 0.4 | 0.5 | 0.5 | ||||||
PDL (dB) | 0.2 | |||||||||
PMD (ps) | 0.1 | |||||||||
Return Loss (dB) | 45 | |||||||||
Directivity (dB) | 50 | |||||||||
Maximum Optical Power (mw) | 500 | |||||||||
Operating Temp. °C | -20 ~ +70 | |||||||||
Storage Temp. °C | -40 ~ +85 | |||||||||
BOX Package (mm) | 100 x 80 x 10 | 140x115x18 | ||||||||
LGX Package | 1U, 2U | |||||||||
19” Rack-Mounted Package | 1U | |||||||||
